Compression springs 1 and 2

Multiple compression spring tools share the same position on the tool set. Click and hold the mouse on the visible tool to open the Sous-outils list and select the desired tool.

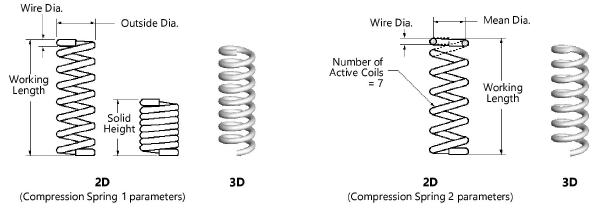

The 2D compression springs are linear objects, while the 3D compression springs are point objects.

2.Click to place the object, and click again to set the rotation. The first time you use the tool in a file, a properties dialog box opens. Set the default parameters. The parameters can be edited later from the Object Info palette.

Parameter	Description
Type of Ends	Specify the spring end style
Outside Diameter	For Compression Spring 1, enter the outside diameter
Mean Diameter	For Compression Spring 2, enter the mean diameter
Wire Diameter	Enter the wire diameter
Solid Height	For Compression Spring 1, enter the solid height (compressed height)
Number of Active Coils	For Compression Spring 2, specify the number of active coils
Working Length	Either specify the spring working length value, or click and drag a spring control point to define the length graphically
Spiral	Select either a Left Hand or Right Hand spiral direction
Display (2D only)	Select a display mode for 2D springs
Draw Center Line (2D only)	Draws the spring with center line(s)

A utility calculates spring rates for compression springs (see Spring calculator).

To simulate the appearance of a spring wound around an object (such as a shaft or screw), use two springs. Set the front spring’s display parameter to Solid - Front Coils Only. The spring behind the object is set to Solid - Rear Coils Only. Adjust the objects’ relative position with the Modify > Send > Send to Front and Modify > Send > Send to Back commands until the object displays correctly.
